PDM (TSK3) Transmission Sleeve Kit - Subaru

PDM (TSK3) Transmission Sleeve Kit - Subaru

Regular price $240.00 USD
Regular price Sale price $240.00 USD
Sale Sold out
Quantity

PDM Transmission Sleeve Kit (TSK3) for Subaru

Manufacturer: Subaru
Original OEM Part Number: 30502AA121
Supersessions: 30502AA120 / 30502AA121 / 30502AA160 (Confirmed Compatible)
Additional Confirmed Compatible Application: 30502AA160
PDMUSA Part Number: TSK3
Replacement Bearing: TSK3-B
Transmission Type: Manual Transmission
Clutch Type: Push-Type Only


✅ Vehicle Compatibility & Chassis Codes

🌎 U.S. Market

Make Model Years Chassis Codes Engine Options
Subaru WRX 2022–2026 VB 2.4L Turbocharged
Subaru WRX 2015–2021 VA 2.0L Turbocharged
Subaru WRX / Impreza WRX 2008–2014 GR / GV 2.5L Turbocharged
Subaru Impreza WRX 2006–2007 GD / GG 2.5L Turbocharged
Subaru Legacy GT 2005–2009 BL / BP 2.5L Turbocharged
Subaru Legacy GT 2010–2012 BM 2.5L Turbocharged
Subaru Legacy Spec B (5MT only) 2006–2009 BL 2.5L Turbocharged
Subaru Outback XT 2005–2009 BP 2.5L Turbocharged
Subaru Forester XT 2004–2008 SG 2.5L Turbocharged
Subaru Baja Turbo 2006 BT 2.5L Turbocharged
Subaru Impreza 2008–2010 GE / GH 2.5L / 5MT
Subaru Outback 2008–2010 BP / BR 2.5L / 5MT

🌍 Global Market

Make Model Years Chassis Codes Engine Options
Subaru WRX 2001–2021 GD / GDA / GR / VA 2.0L / 2.5L Turbocharged
Subaru Impreza WRX 2001–2014 GD / GR 2.0L / 2.5L Turbocharged
Subaru Legacy GT 2005–2009 BL / BP 2.0L / 2.5L Turbocharged
Subaru Legacy Spec B (5MT only) 2006–2009 BL 2.0L / 2.5L Turbocharged
Subaru Outback XT 2005–2009 BP 2.0L / 2.5L Turbocharged
Subaru Forester XT 2004–2008 SG 2.0L / 2.5L Turbocharged


📌 30502AA160 Confirmed Compatible

PDM USA has physically verified fitment of the TSK3 Sleeve and Bearing Kit on a Subaru application originally equipped with the OEM 30502AA160 clutch release bearing.

The OEM 30502AA160 bearing itself is not compatible with the PDM sleeve system. The PDM TSK3 uses its own sleeve-specific clutch release bearing, supplied as part of the complete kit.

A complete PDM TSK3 Sleeve and Bearing Kit was installed and physically verified for proper fit and operation on this application.

Therefore, vehicles originally requiring the Subaru OEM 30502AA160 bearing may use the complete PDM TSK3 Kit when equipped with the applicable push-type clutch system.

⚠️ IMPORTANT: The TSK3 is not universal and is not compatible with Subaru 6-speed pull-type clutch systems.


💪 What's in the Kit?

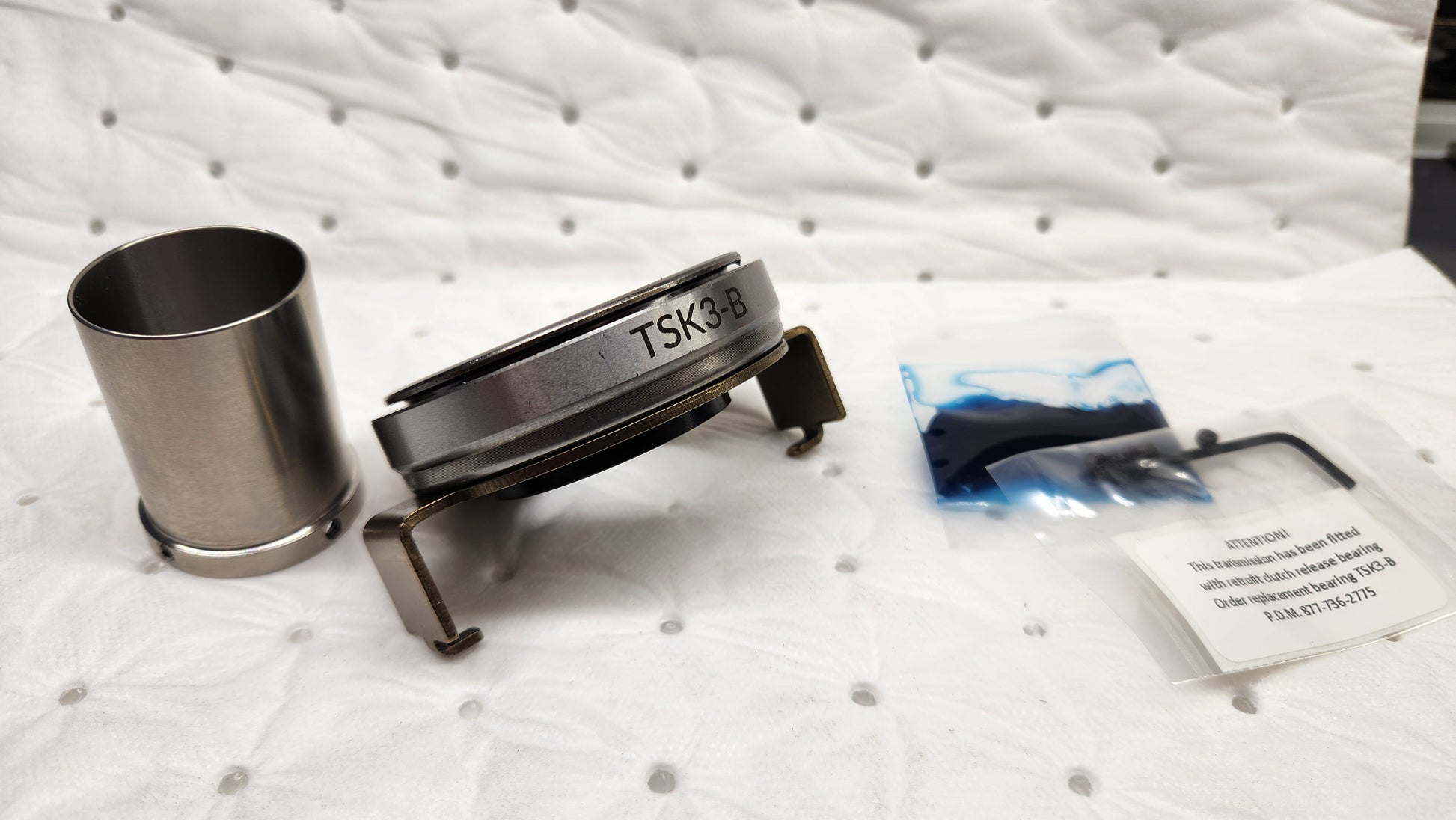

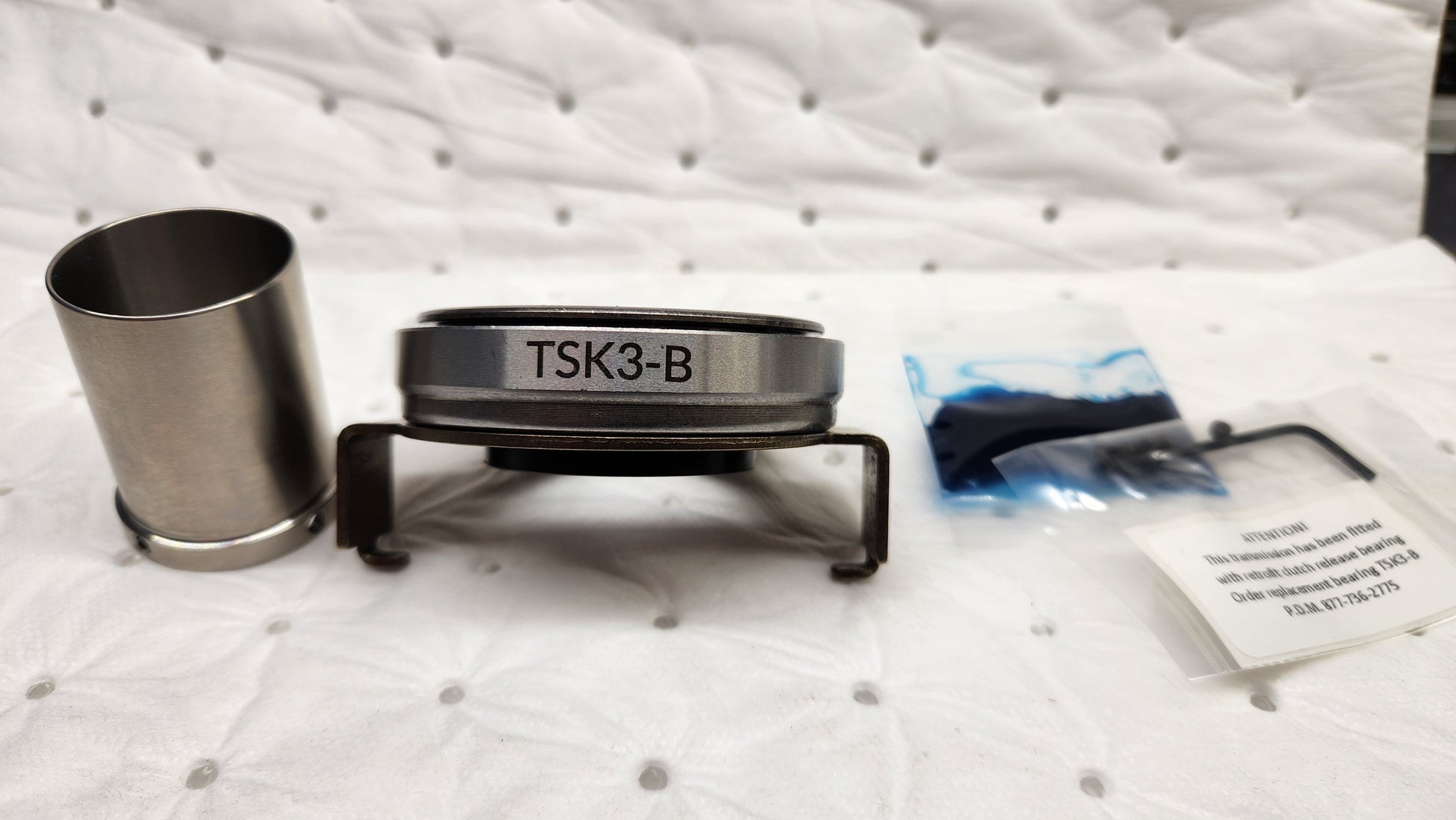

Every complete PDM TSK3 Transmission Sleeve Kit includes:

  • CNC-machined stainless steel guide sleeve

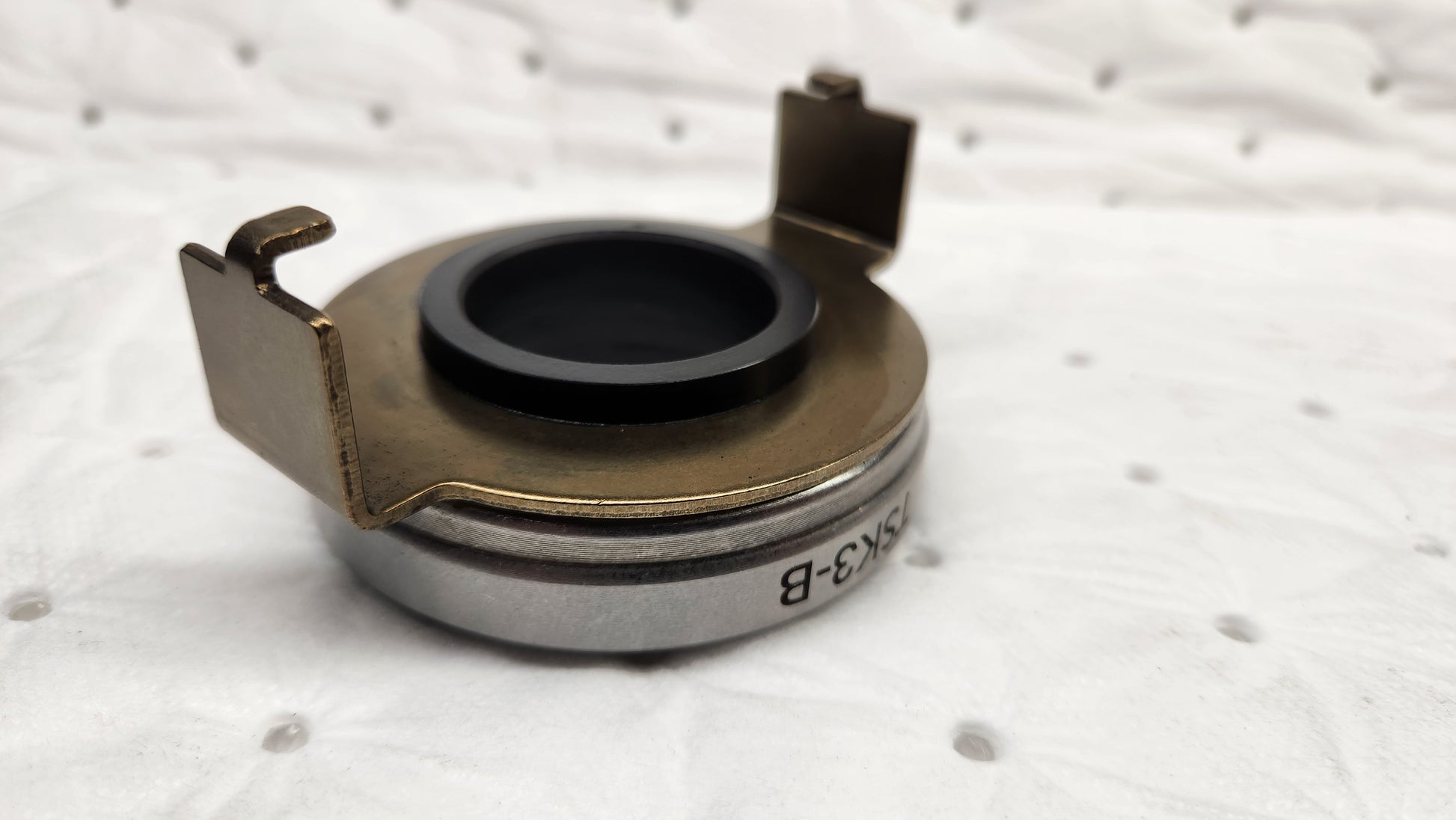

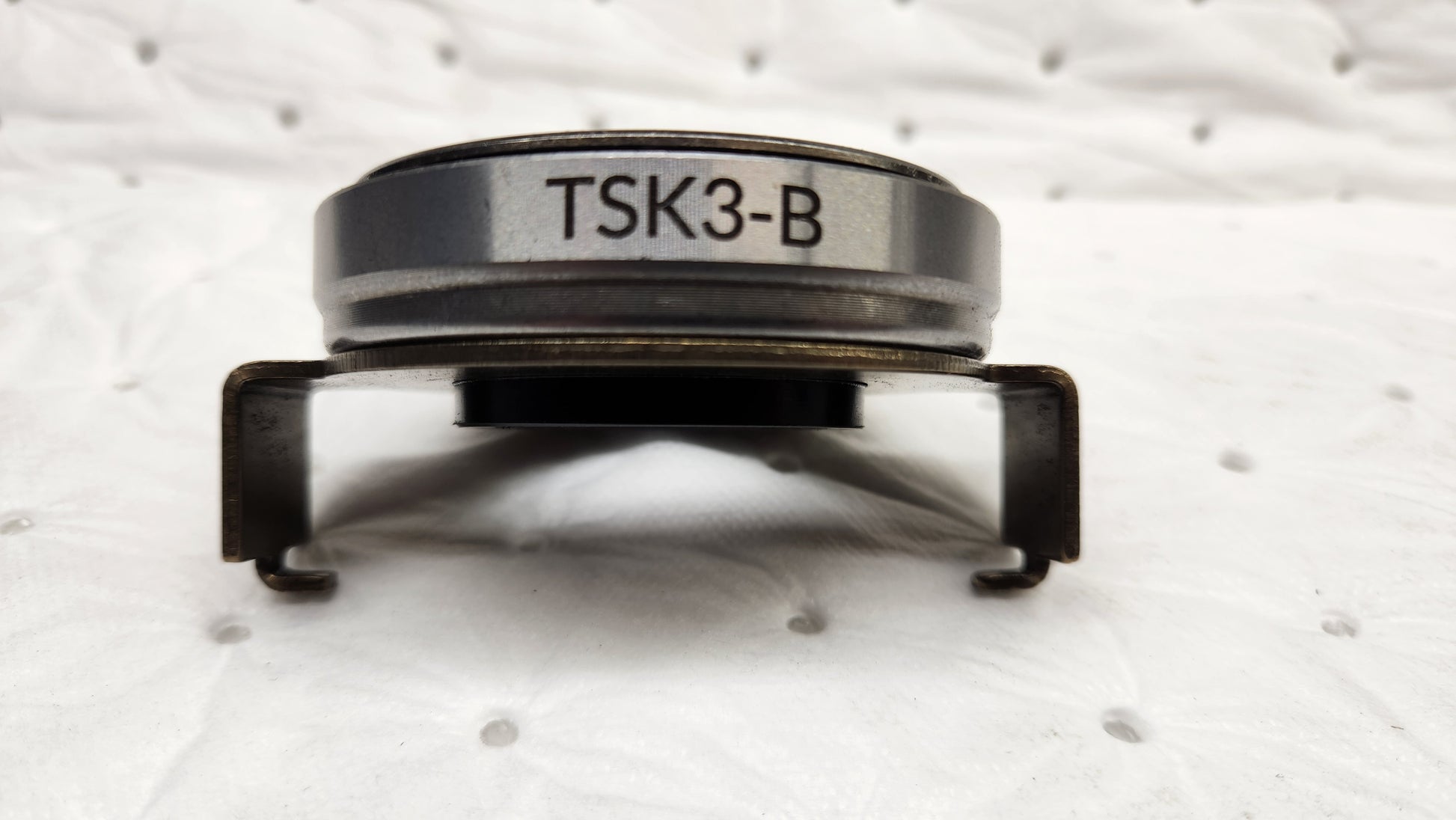

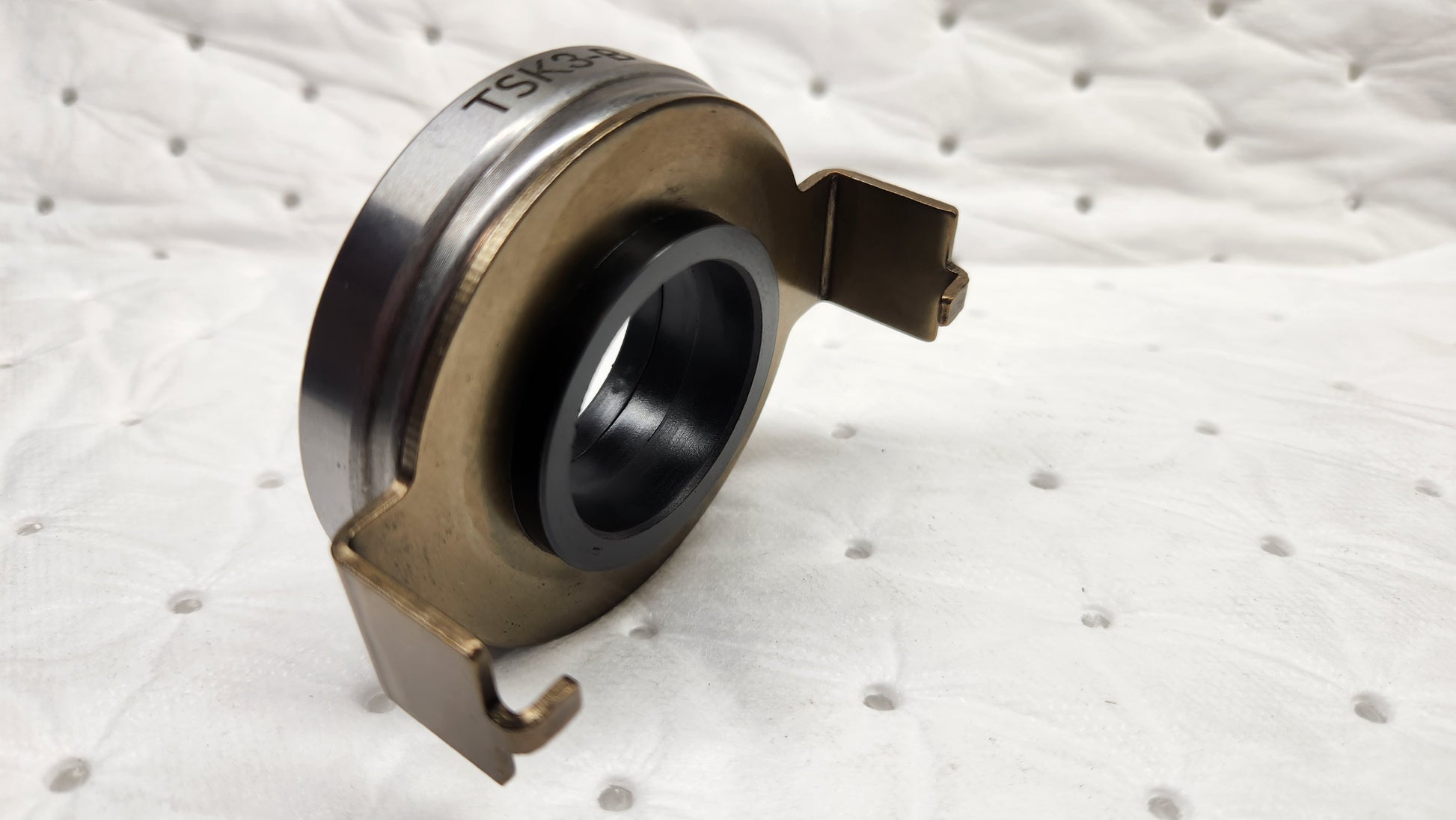

  • TSK3-B sleeve-specific clutch release bearing
  • Bearing retaining clip
  • Installation hardware

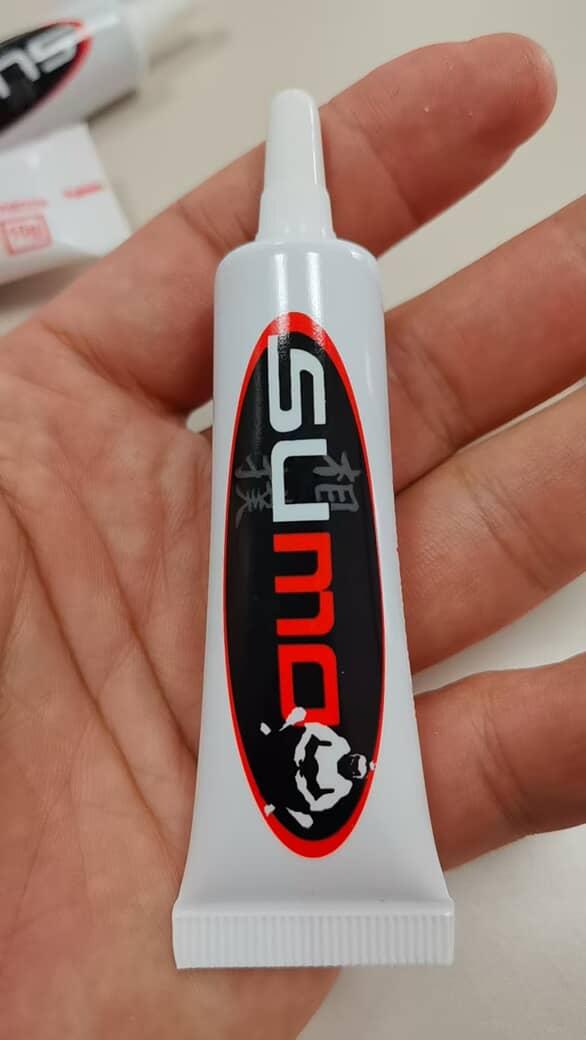

  • High-temperature specialty grease
  • Detailed installation instructions

⚠️ IMPORTANT: The supplied retaining clip is part of the PDM sleeve system and must be installed with the replacement bearing. Failure to use the correct clip can result in improper bearing retention and premature wear.


⚙️ How the PDM Sleeve System Works

Certain Subaru manual transmissions use an aluminum clutch release bearing guide surface. Over time, the clutch release bearing can wear, score, or damage this surface, preventing the bearing from traveling smoothly during clutch engagement and release.

The PDM TSK3 restores this critical bearing surface by installing a precision-machined stainless steel sleeve over the transmission's original aluminum guide surface, providing a new, durable surface for the clutch release bearing to operate on.

Because the sleeve increases the outside diameter of the original guide, the factory-size clutch release bearing can no longer be used. Every complete TSK3 therefore includes a matched oversized PDM TSK3-B clutch release bearing designed specifically for the sleeved guide.

The TSK3 can be installed to repair an already worn or damaged guide surface, or preventatively during clutch replacement or transmission service before significant wear occurs.

Once installed, the stainless steel sleeve is intended to remain in place and normally does not need to be replaced during future clutch service. When another clutch replacement is required, the PDM TSK3-B replacement bearing is available separately.


🛠️ Installation

The PDM TSK3 is designed to install without machining or permanent modification to the transmission housing.

  • Push-type manual transmission applications only
  • No machining of the transmission case required
  • No special machine-shop operations required
  • Sleeve installs over the existing guide surface
  • Complete kit includes the required bearing, clip, hardware, and specialty grease
  • Professional installation is recommended

⚠️ Always verify the vehicle's original clutch release bearing application and clutch type before installation.

📄 Installation instructions are included with every kit.


❌ Not Compatible With

  • Subaru 6-speed pull-type clutch systems
  • Most STI 6MT applications
  • Automatic transmissions

🔍 OE Bearings for Reference

          30502AA121                     30502AA160

   30502AA160 for reference
